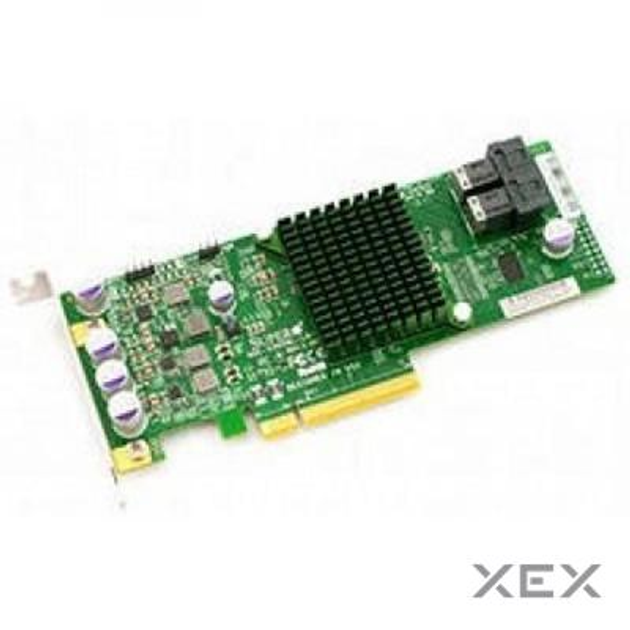

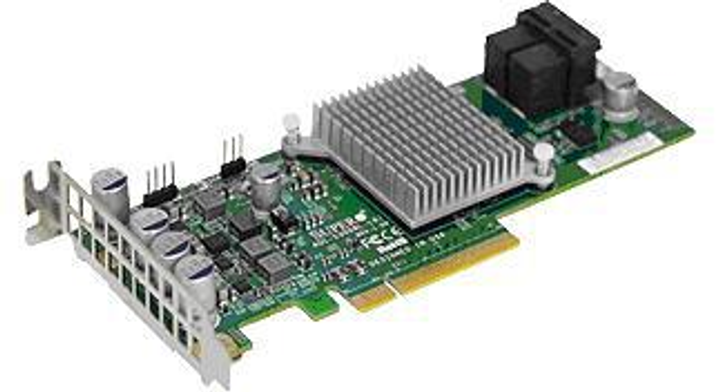

Supermicro AOC-S3008L-L8I 8 internal ports, low-profile, 12Gb/ s per port- Gen-3, 63HDD - RAID 0,1,10
| Main Specifications |
| Dimensions (WxDxH) | 837 FPBGA-HP (25mm x 25mm) |
| Form Factor | Low profile |
| Interface (Bus) Type | x8 lane PCI Express® 3.0 |
| Device Type | SAS3 controller |
| Processor |
| Memory RAM | External Memory Interface Support: Flash ROM, NVSRAM |
| Processor | Processor at 1.2 GHz |
| Storage Controller |
| Channel Quantity | 8 internal SAS3 ports w/ 2 mini SAS HDD |
| Processor | Processor at 1.2 GHz |
| RAID Level | RAID 0, 1 and 10 |
| Max Storage Devices Quantity | Supports 63 Devices |
| Data Transfer Rate | Supports 12, 6 and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates |
| Power |
| Operating Voltage | 19 Watts |
| Requirements | 13W |
| Environmental Parameters |
| Storage Temperature | Operates up to 55ºC |
| Software / System Requirements |
| OS Supports | Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux |
| Management Software | Supports MegaRAID Storage Manager Software |
| Miscellaneous |
| RAID Data Protection Features | SSP, SMP, STP, SATA |
| Key Application | Blade Servers, Direct Attached SAS+SATA controller solutions for entry to mid-range servers |
| | External storage controllers requiring SAS+SATA interface for the host or drive side connect |
| Features | Enlarged venting hole mounting bracket for improved air flow |
