Підсилювач з процессором HELIX Amplify 206 DSP

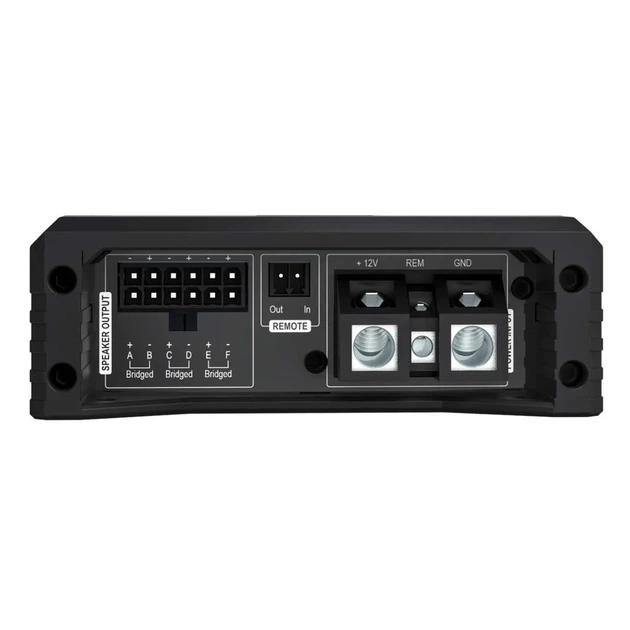

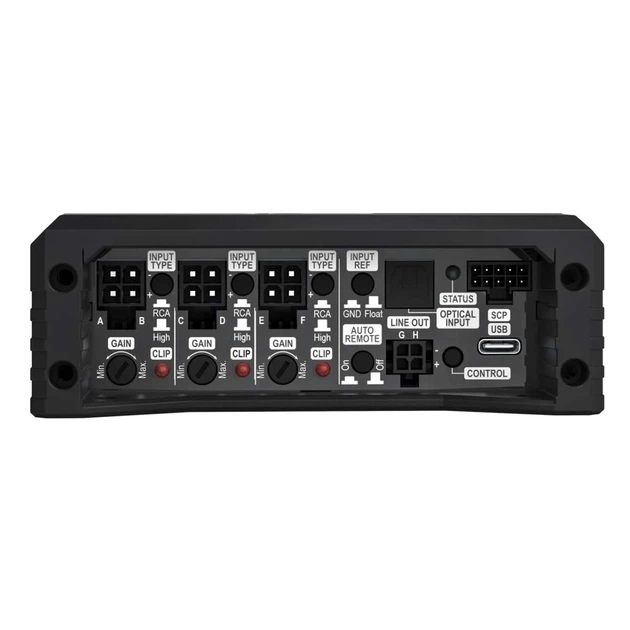

Power RMS≤ 1% THD+N@ 14.4 V - @ 4 Ohms6 x 100 Watts - @ 2 Ohms6 x 190 Watts - @ 1 Ohm- - bridged @ 4 Ohms3 x 380 Watts - bridged @ 2 Ohms- Max. output power per channel*Up to 240 Watts RMS @ 2 Ohms Up to 480 Watts RMS @ 4 Ohms bridged Amplifier technologyClass D Inputs6 x RCA / Cinch or 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 2 x Remote In Input sensitivityRCA / Cinch:1 - 8 Volts Highlevel: 2 - 16 Volts Input impedanceRCA / Cinch 4,8 kOhms Highlevel 9 - 33 Ohms or 20 kOhms with ADEP.3 Outputs6 x Speaker output 2 x RCA / Cinch 1 x Remote Out Output voltage RCA / Cinch8 Volts Frequency response20 Hz - 22,000 Hz DSP resolution64 Bit DSP power1 x 295 MHz (1.2 billion MAC operations/second) Sampling rate48 kHz DSP type1 x Audio signal processor Signal convertersA/D: BurrBrown 24 Bit D/A: AKM 24 Bit Signal-to-noise ratio (A-weighted)Analog input: 99 dB @ full power Digital input: 102 dB @ full power Distortion (THD @ 1 kHz, 1 W into 4 Ohms)< 0.005 % Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms)< 0.02 % Distortion (THD @ 100 Hz, 1 W into 4 Ohms)- Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms)- Damping factor70 Operating voltage10.5 - 16 Volts (max. 5 sec. down to 6 Volts) Power ratingDC 12 V ⎓ 93 A max. Idle current1,100 mA Max. remote output current500 mA Operating temperature range-40 °C to +70 °C Fuse3 x 25 A LP-Mini-fuse (APS) Additional featuresADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor Dimensions (H x W x D)40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”
